Power30X Weld-cleaner 110/230V
Price range: £1,920.00 through £3,020.00
The compact machine that does more.
Power30X takes the control of the Power30 and adds polishing capability.
It is built for stainless TIG welds, smaller components, thinner materials, and workshops that need a portable machine with more than one use.
Use the lower-voltage cleaning mode for lighter TIG welds and better brush life. Use the higher-voltage mode for darker welds or heavier oxide. Switch to polishing mode when you’re welding brushed or mirror finish stainless. Add a marking set when you need logos, part IDs, serial numbers, or traceability marks.
Which set?
- Basic: machine + cables only
- A: best first time setup
- B: Set A + Standard Marking set
- C: Set A + Marking set + Printer
Description
The compact machine that does more.
Power30X takes the control of Power30 and adds polishing capability.
It is built for stainless TIG welds, smaller components, thinner materials and workshops that need a portable machine with more than one use.
Clean lighter TIG welds. Attack darker welds with more oxide. Switch to polishing mode when the finish needs extra work. Add a marking set when the job needs logos, part IDs, serial numbers or traceability marks.
Compact size. More capability. Still proper Cougartron bite.
For workshops that need more than simple cleaning.
Some stainless jobs need more than heat tint removal.
The weld needs cleaning. The surface needs polishing. The part may need marking. The machine still needs to be small enough to move around the workshop or take to site.
That is where Power30X earns its place.
It gives operators a controlled 5-30A cleaning range, two cleaning modes, polishing mode and marking capability with the correct Cougartron marking set.
A compact machine should not limit what the job can become.
Why Power30X makes sense.

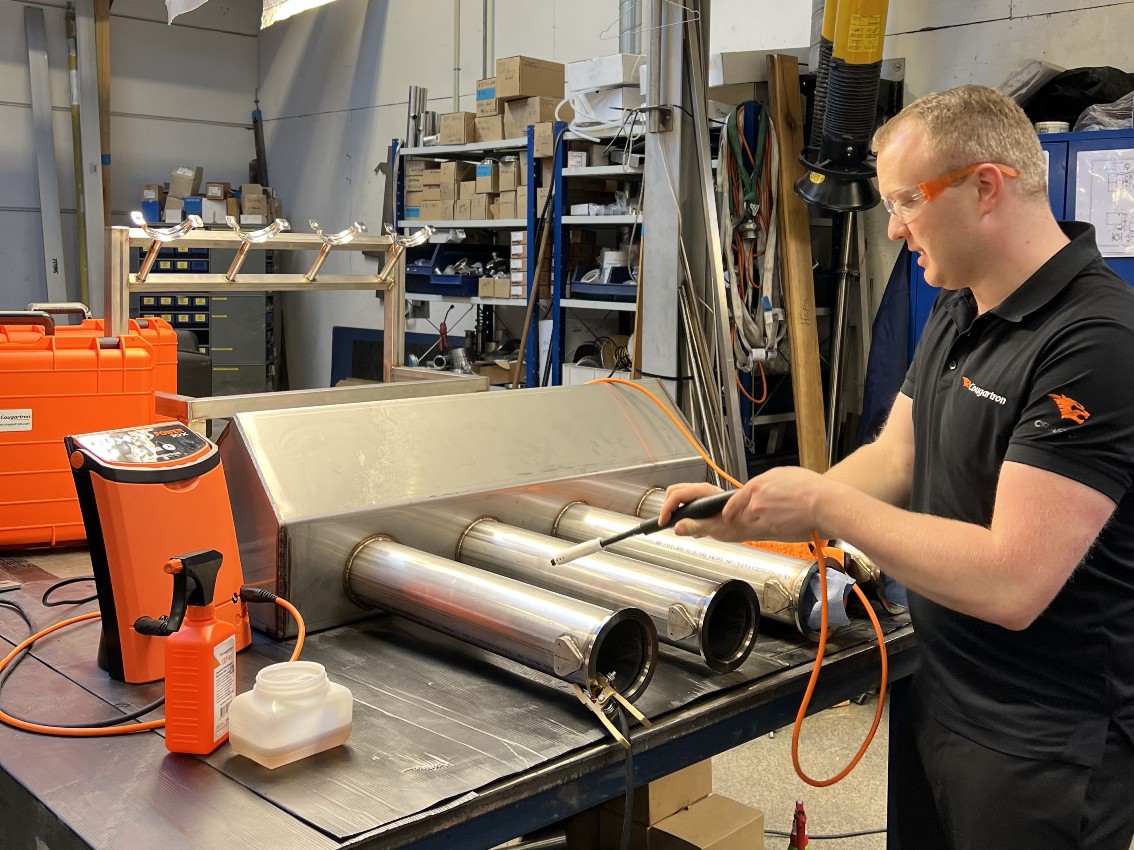

Built for stainless TIG welds
Power30X is made for effective cleaning on stainless TIG welds, especially where control and finish both matter.
Two cleaning modes
Use the lower-voltage mode for lighter TIG welds and extended brush life. Use the higher-voltage mode for darker welds or heavier oxide.
Polishing built in
Switch to polishing mode when you are working on brushed or polished stainless and the surface needs more than cleaning.
Marking ready
Add a Cougartron marking set when you need logos, part IDs, serial numbers, labels, batch data or traceability marks.
Compact and portable
The built-in handle, low weight and robust transport case make Power30X easy to move around the workshop or take to site.
Fluid-feed compatible
Power30X can be used with Cougartron FL10 or FL20 fluid feed systems when you want fewer stops and a smoother cleaning rhythm.
Made for controlled stainless work with more options.
Power30X is a strong fit for:
- Stainless TIG weld cleaning
- Light-to-medium weld discolouration
- Darker TIG welds with more oxide
- Heat tint removal
- Oxide removal
- Thin stainless parts
- Smaller components
- Brushed stainless finishing
- Polished stainless surface finishing
- On-site stainless work
- Workshop repair jobs
- Light production work
- Electrochemical marking with the correct marking set
If the job needs cleaning, polishing and the option to mark, Power30X is the compact machine to look at.
Stop using three workarounds for one stainless job.
Cleaning the weld is only part of the work.
Sometimes the surface needs polishing. Sometimes the part needs a permanent mark. Sometimes the job moves away from the bench.
Power30X keeps those jobs inside one compact Cougartron setup.
It does not try to be the biggest machine in the range.
It gives smaller stainless jobs more ways to finish properly.

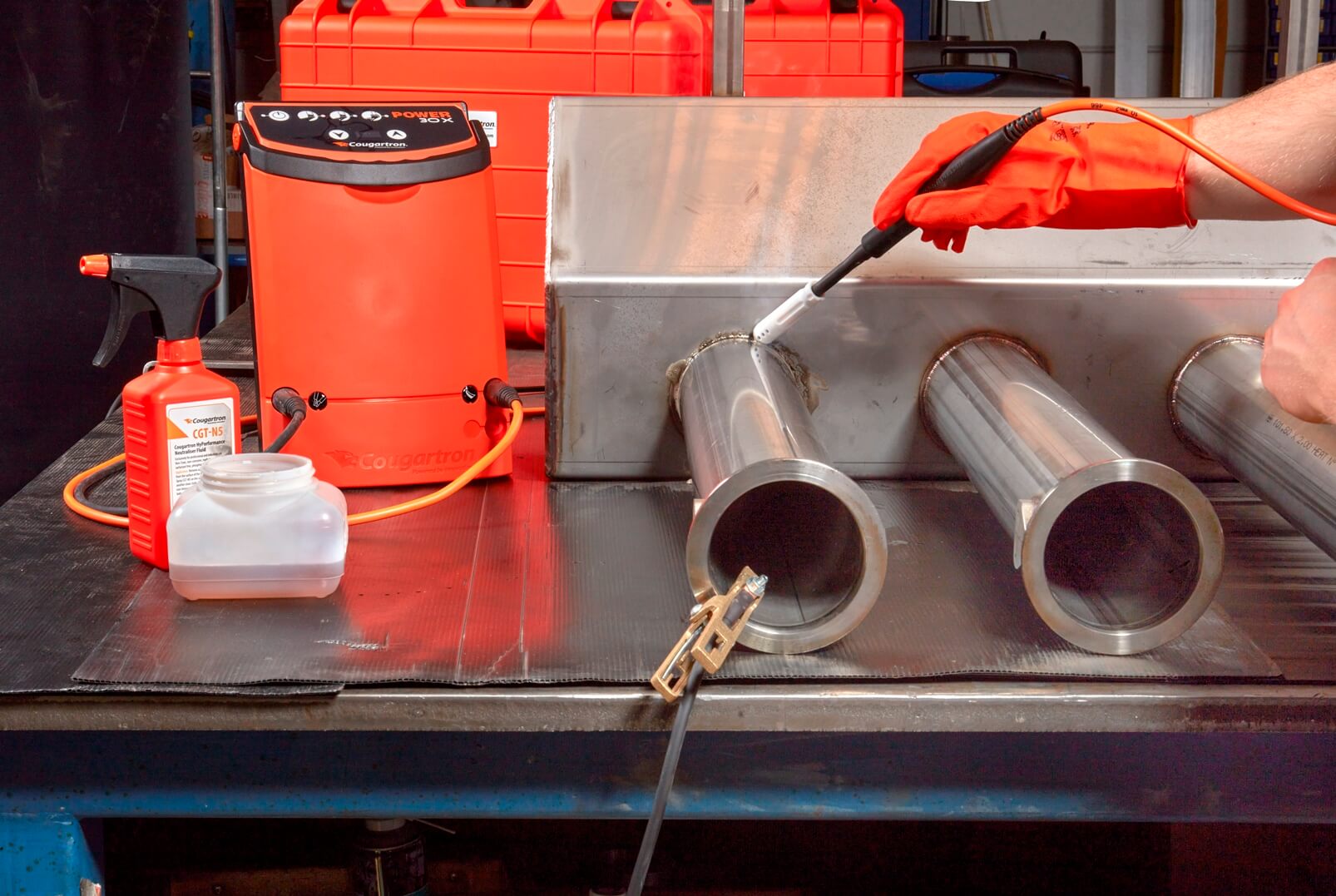

Clean. Polish. Mark.
Power30X gives operators four useful modes in one compact machine.
Mode 1
Lower voltage output for lighter TIG welds and extended brush life.
Mode 2
Higher voltage output for darker TIG welds or welds with more oxide.
Polishing mode
Electrochemical polishing for stainless surfaces where the finish needs more work after welding.
Marking mode
Fast electrochemical marking and etching when fitted with the correct Cougartron marking set.
The job changes. The machine keeps up.
For stainless that needs more than clean.
Some jobs are not finished when the heat tint is gone.
Brushed stainless, polished stainless and visible parts often need the surface to look right, not just clean enough.
Power30X adds polishing capability to the compact Power range, giving operators a practical way to improve the surface finish without stepping into a larger machine.
Clean the weld. Work the finish. Send out better stainless.
More capable than Power30. Still compact.
Power30X sits in the range for customers who want compact weld cleaning but do not want to stop at cleaning only.
Choose Power30X when you need TIG weld cleaning, polishing and marking capability in one portable machine.
Choose ProPlus or FURY when the work becomes heavier, darker, longer or more production-led.
Power30X is not built to replace a heavy-duty production machine.
It is built for workshops that want one compact machine to do more.
Built to move with the job.
Not every stainless job happens at the same bench.
Power30X is light, compact and easy to carry, with a built-in handle and robust transport case for real workshop and site work.
Use it in the workshop, take it to site, or extend the working distance with compatible 4m Cougartron extension leads when the job is away from the power source.
Less dragging parts around. More finishing where the work actually is.

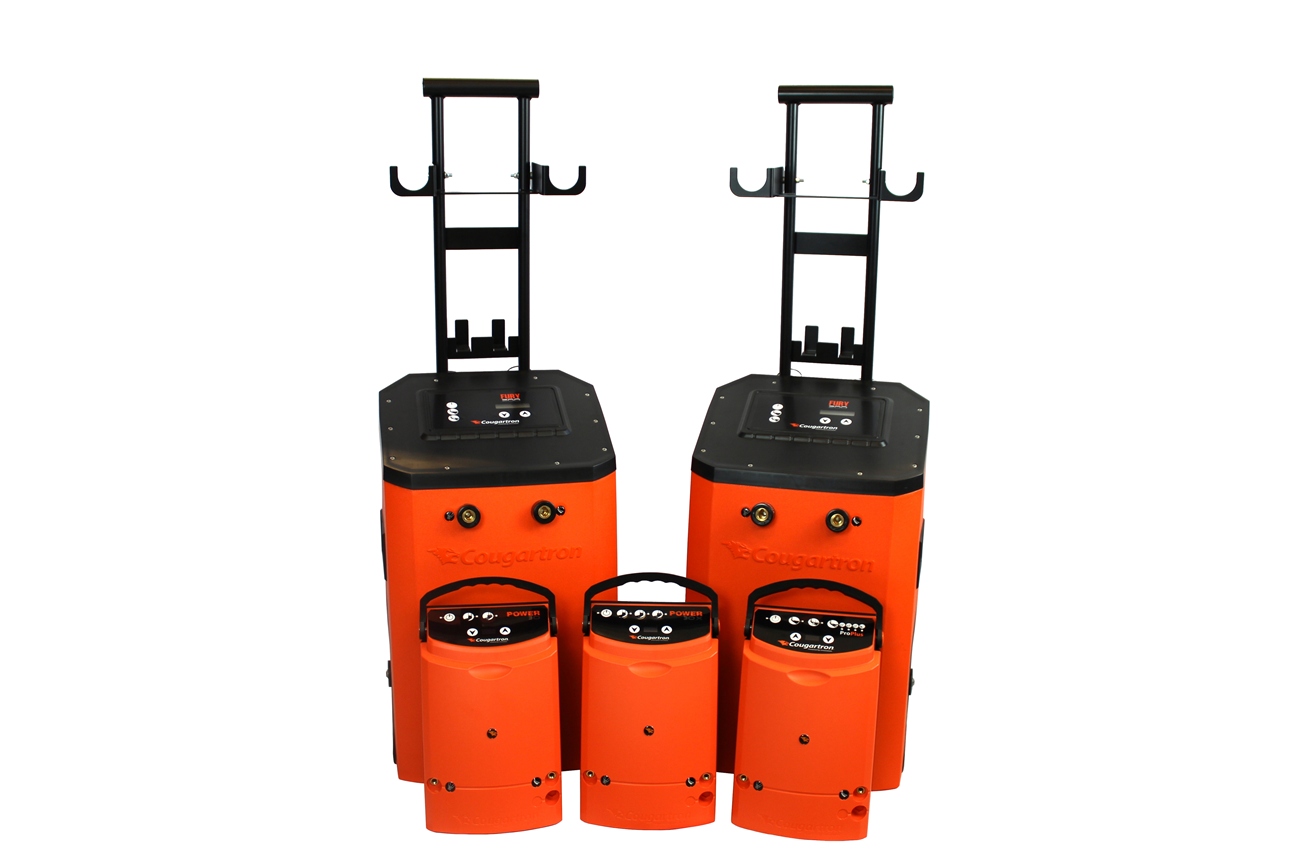

Where Power30X sits in the Cougartron range.
Power30X is the compact multi-function machine in the precision range.
- Choose PowerOne when budget is the main driver and you need a simple first weld cleaner.
- Choose Power30 when you want compact TIG weld cleaning with sharp control.
- Choose Power30X when you want compact control plus polishing and marking capability.
- Choose ProPlus when you need more bite for regular stainless workshop use.
- Choose FURY when weld cleaning becomes heavy, daily or production-led.
Power30X has a clear place: stainless TIG welds, smaller parts, polishing work, marking capability, on-site jobs and workshops that need more than a single-purpose cleaner.
Key features.
- Compact Cougartron weld cleaner for stainless TIG welds
- Two cleaning modes for lighter and darker TIG welds
- Polishing mode for stainless surface finishing
- Marking mode with optional Cougartron marking set
- 5-30A weld-cleaning range in 5A increments
- 5-30A polishing range in 5A increments
- 100% duty cycle
- Dual input voltage for use with 110V or 230V power supplies
- Compact and easily transportable
- Built-in handle
- 4m work lead and 4m earth lead supplied as standard
- Compatible with optional 4m extension leads
- Cougartron twist shroud for controlled brush length
- Splash-proof membrane control panel
- Fluid-feed compatible with FL10 or FL20
- IP51 enclosure protection
- CE certified
Technical specifications.
| Feature | Power30X |
|---|---|
| Product type | Compact weld cleaner with polishing and marking capability |
| Power supply | 110-230V AC, 50/60Hz, 4A |
| Weld-cleaning amp range | 5-30A, 5A increments |
| Weld-cleaning voltage range | 10-14V AC |
| Polishing amp range | 5-30A, 5A increments |
| Polishing voltage range | 10V DC |
| Marking amp range | 2-10A, 2A increments |
| Marking voltage | 10V AC |
| Duty cycle | 100% |
| Detachable handle | No |
| Input cable length | 1.5m |
| Output cable length | 4m |
| Output cable size | 10mm² |
| Brush holder options | 1 |
| Fluid-feed compatible | Yes |
| Size, machine only | H 378mm with handle raised, W 220mm, D 170mm |
| Enclosure protection | IP51 |
| Certification | CE |
Power30X set contents.
| Part no. | Description | Basic Set | Starter Set A | Starter Set B | Starter Set C |
|---|---|---|---|---|---|
| n/a | Power30X weld cleaner, machine only | x | x | x | x |
| WELC2047 | Lead with handle, 4m, 50A, x-connector | x | x | x | x |
| WELC2118 | Lead with earth clamp, 4m, 50A, x-connector | x | x | x | x |
| WELC2226 | Wand/twist shroud set for 1 x M6 brush | x | x | x | x |
| WELC2005 | Acid pot, 500ml, with lid | x | x | x | x |
| WELC2149 | Microfibre cloth, 40 x 40cm, orange | x | x | x | x |
| n/a | Country-specific power lead | x | x | x | x |
| WELC2910 | Protective cover, small, 1 pc | x | x | x | x |
| n/a | Cardboard packaging with polystyrene insert | x | |||
| WELC2064 | Large transport case | x | x | x | |
| WELC5006 | Foam insert for large transport case | x | x | x | |
| WELC3092 | Power-brush, M6, 30A, 5 pcs | x | x | x | |
| WELC3081 | CGT-550 Weld Cleaning & Polishing Fluid, 1L | x | x | x | |
| WELC3165 | CGT-N5 HyPerformance Neutralising Fluid, 500ml | x | x | x | |
| WELC2092 | Sprayer for spray bottle, orange | x | x | x | |
| WELC2867 | Cougartron acid-resistant gloves, 1 pair | x | x | x | |
| WELC2868 | Cougartron safety glasses | x | x | x | |
| WELC4045 | Marking set for weld-cleaning machine, Standard | x | |||
| STEN1029 | Stencil voucher, maximum size 150 x 100mm | x | x | ||
| WELC4956 | Marking set for weld-cleaning machine, Advanced | x |
Power30X set buying information.
| Description | Weight | Part no. |
|---|---|---|
| Power30X Weld Cleaner – Basic Set | 8.41kg | WELC1080 |
| Power30X Weld Cleaner – Starter Set A | 15.28kg | WELC1081 |
| Power30X Weld Cleaner – Starter Set B | 18.44kg | WELC1082 |
| Power30X Weld Cleaner – Starter Set C | 20.64kg | WELC1083 |
Useful Power30X accessories.
- FL10 or FL20 Fluid Feed System – adds fluid feed for fewer stops and better brush control.
- Mobile equipment stand – gives the machine a cleaner place to sit and move around the workshop.
- Mobile workstation – helps control the mess around regular weld-cleaning work.
- 4m extension leads – available in orange and black when the job is away from the power source.
- Power-brush replacements – keep spare M6 brushes ready so cleaning does not stop mid-job.
- Replacement twist shroud – compatible with the supplied Power30X wand.
- Marking set – adds electrochemical marking capability for logos, part IDs, serial numbers and traceability.
Not sure if Power30X is enough?
Send us a photo of your welds, the material thickness, the finish requirement and how often you clean stainless.
We will tell you whether Power30X fits the job, or whether Power30, ProPlus or FURY makes more sense.
No oversized machine. No weak finish. Just the right Cougartron for the work.
Power30X data sheet.
Additional information
| Weight | N/A |
|---|---|
| Choose machine set | Basic set 110-230V, Starter Set A 110-230V, Starter Set B 110-230V, Starter Set C 110-230V |
